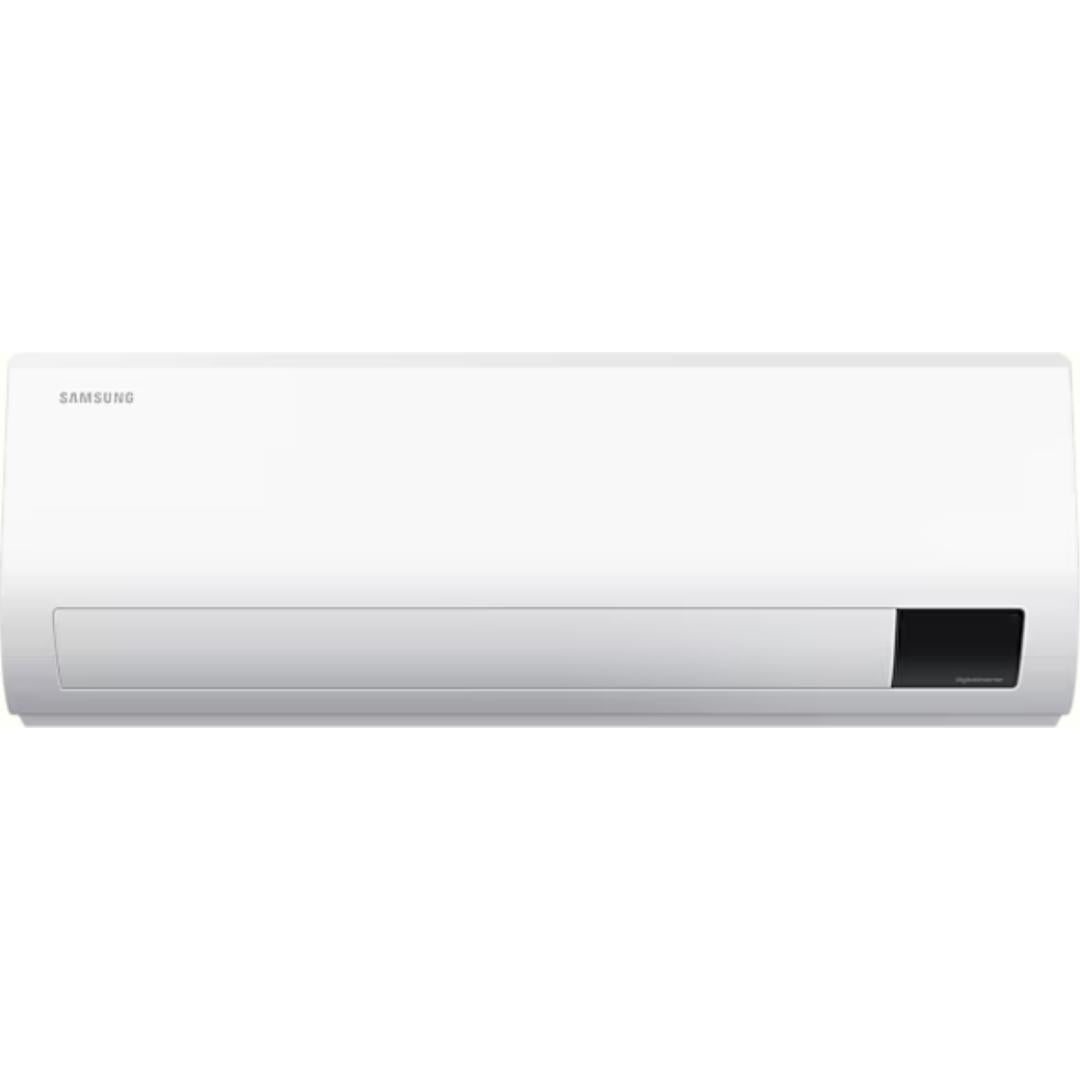

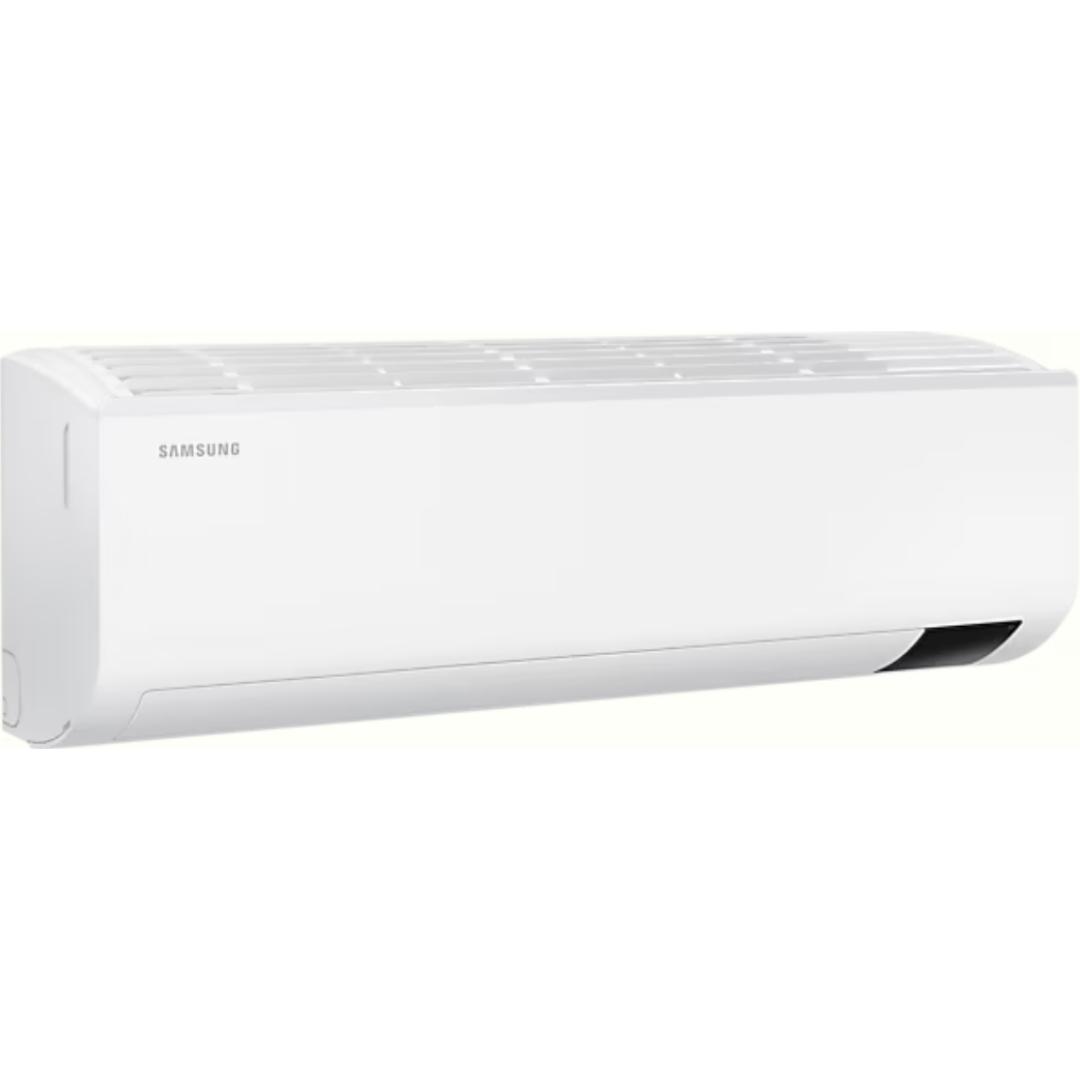

Samsung 1.50 T AR18CX3ZAWKNNA/AR18CX3ZAWKXNA 3 Star Convertible 5-in-1 Fast Cooling Mode, Dust Filter with Anti Bacteria Hot & Cold Inverter Split Air Conditioner (2024 Model, White)
Key Features
- Capacity: 1.50 T Suitable for medium sized rooms (180 sq.ft.)
- Star Rating: 3 Star - Energy efficiency, Annual Energy Consumption: 955.91 Units Per Year, ISEER Value: 4.05
- Copper Condenser Coil: Better cooling and requires low maintenance
- Special Features: Inverter Compressor, Remote Controlled, Silent Mode, 2 Way Swing, Fast Cooling
- Warranty: 1 Year Warranty on Product, 5 Years Warranty on PCB and 10 Years Warranty on Compressor
Genaral Features
| Model Name | AR18DY5BAWKNNA/XNA |
|---|---|
| EMI Offer | Available |
| Appliances | Air Conditioners |
| Air Conditioners Type | Split |
| Brand | Samsung |
| In The Box | 1 Indoor Unit, 1 Outdoor Unit, User Manual, Warranty Card, Remote, Copper Pipe |
| Color | White |
| Capacity in T | 1.50 T |
| Compressor | Inverter Compressor |
| Remote Control | Yes |
| Condenser Coil | Copper Condenser Coil |
Capacity
| Capacity (Cooling, Btu/hr) | 17061 Btu/hr |
|---|---|
| Capacity (Heating, Btu/hr) | 18426 Btu/hr |
| Capacity (Cooling, Min - Max, Btu/hr) | 6824 - 20473 Btu/hr |
| Capacity (Heating, Min - Max, Btu/hr) | 5459 - 19108 Btu/hr |
| Capacity (Cooling, W) | 5000 W |
| Capacity (Heating, W) | 5400 |
| Capacity (Cooling, Min - Max, W) | 2000 - 6000 W |
| Capacity (Heating, Min - Max, W) | 1600 - 5600 W |
Energy Efficiency
| ISEER (W/W) | 4.05 |
|---|---|
| EER (Cooling, W/W) | 3.27 W/W |
| COP (Heating, W/W) | 3.31 W/W |
| EER (Cooling, Btu/hW) | 11.15 Btu/hW |
| COP (Heating, Btu/hW) | 11.30 Btu/hW |
| Energy Star Rating (Cooling) | 3 Star |
Noise Level
| Noise Level (Indoor, High/Low, dBA) | 45/26 dBA |
|---|---|
| Noise Level (Outdoor, High/Low, dBA) | 53 dBA |
Power Electrical Data
| Power Requirement | AC 230 V, 50 Hz |
|---|---|
| Power Source(Φ/V/Hz) | 1 / 230 / 50 |
| Power Consumption(Cooling, W) | 1530 W |
| Power Consumption(Heating, W) | 1630 W |
| Annual Electricity Consumption | 955.91 W |
| Operating Current(Cooling, A) | 6.6 A |
| Operating Current(Heating, A) | 7.2 A |
Dimensions
| Gross Dimension (Indoor, WxHxD) | 95.00 x 29.00 x 37.50 Centimeter |
|---|---|
| Gross Dimension (Outdoor, WxHxD) | 92.60 x 64.00 x 41.20 Centimeter |

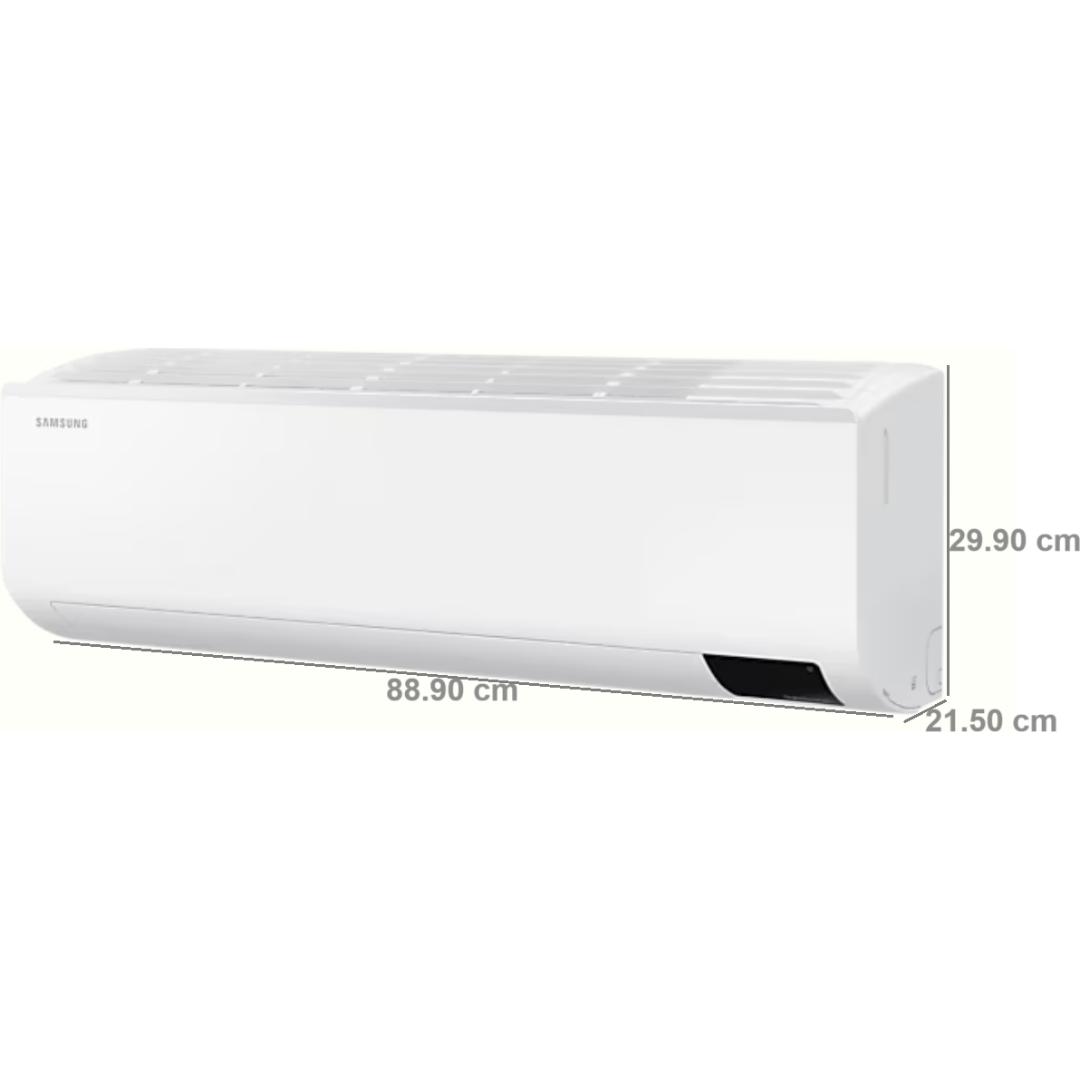

| Net Dimension (Indoor, WxHxD) | 88.90 x 29.90 x 21.50 Centimeter |
| Net Dimension (Outdoor, WxHxD) | 79.00 x 54.80 x 28.50 Centimeter |
| Gross Weight (Indoor, kg) | 11.7000 |
| Gross Weight (Outdoor, kg) | 36.9000 |
| Net Weight (Indoor, kg) | 10.0000 |
| Net Weight (Outdoor, kg) | 31.7000 |
Technical Information
| Piping (Max, m) | 20.00 m |
|---|---|
| Piping Height (Max, m) | 12.00 m |
| SVC Valve (Liquid (ODxL)) | 6.35 m |
| SVC Valve (Gas (ODxL)) | 12.70 m |
| Moisture Removal (l/hr) | 2.0 l/hr |
| Air Circulation (Cooling, ㎥/min) | 15.3 ㎥/min |
| Refrigerant (Type) | R 32 |
| Refrigerant (Charging, kg) | 0.95 kg |
| Refrigerant (Charging, tCO2e) | 0.64 tCO2e |
| Low Ambient (Cooling, ℃) | 15~52 ℃ |
| Low Ambient (Heating, ℃) | -5~24 ℃ |
| Outdoor Unit (Compressor Type) | BLDC |
| Outdoor Unit (Anti-Corrosion Fin) | Yes |
Air Flow
| WindFree Cooling | No |
|---|---|
| Air Direction Control (Up/Down) | Auto |
| Air Direction Control (Left/Right) | Mannual |
| Air Flow Control Step (Cool/Fan) | 5 / 4 |
Air Purification
| PM 1.0 Filter | No |
|---|---|
| Tri Care Filter | No |
| Easy Filter Plus (Anti-Bacteria) | Yes |
| Auto Clean (Self Cleaning) | Yes |
| Dust Filter | Yes |
Convenience Features
| SmartThings | No |
|---|---|
| AI Auto Cooling | No |
| Motion Detect Sensor | No |
| Freeze Wash | No |
| Filter Cleaning Indicatior | Yes |
| Indoor Temp. Display | Yes |
| Display On/Off | Yes |
| Beep On/Off | Yes |
| 24-Hour Timer | Yes |
| Auto Changeover | Yes |
| Auto Restart | Yes |
Operating Mode
| Auto Mode | Yes |
|---|---|
| Fast Cool | Yes |
| Good Sleep Mode | Yes |
| Eco Mode | Yes |
| 5 Step Mode | Yes |
| Dehumidification | Yes |
| Fan Mode | Yes |
| Quiet | Yes |
Warranty
| Warranty | 1 Year Warranty on Product, 5 Years Warranty on PCB and 10 Years Warranty on Compressor |
|---|---|
| Warranty Type | On Site |
| Covered In Warranty | All Parts, Excluding Air Filter, Front Grill & Plastic Parts (After Installation). The Warranty Covers Defective Materials and Workmanship From the Date of Purchase. Beyond the First Year of the Warranty Period Only the Compressor Repair (Excluding Gas Filled Inside the Compressor) Will be Provided Free of Cost for 5 Years From Date of Purchase. Refrigerant Gas is Having Only One Year Warranty |
| Not Covered in Warranty | Parts: Air Filter, Front Grill is Not Covered in the Warranty After Installation. The Warranty Does Not Cover Installation, Demonstration. Accessories External to the System. Damage Parts. The Product is Not Used According to the Instructions Given in the Instruction Manual. Defects Caused by Improper Use as Determined by the Company Personnel. Modification, Alteration of Any Nature is Made in the Electrical Circuitry or Physical Construction of the Set. Site (Premises Where the Product is Kept) Conditions That Do Not Confirm to the Recommended Operating Conditions of the Machine. Defects Due to Cause Beyond Control Like Lightning Abnormal Voltage Acts of God While in Transit to Service Centers or Purchaser's Residence. |
Digital Inverter boost delivers a swift 43% faster cooling, 4950 W rated cooling capacity makes it durable even in peak summer with minimal deration. The 2-way swing ensures broad cooling coverage up to 15 meters.
Fast Heating: Fast heating mode quickly distributes warm air to every corner of your room. Thanks to the unique design, it heats areas quickly, reaching desired temperatures fater than conventional models.
Fast Cooling: Cool rooms quickly from corner to corner, so feel comfortable wherever you are. Digital Inverter technology cools the air 43% faster*. Its advanced design also has a 15% larger fan, 18% wider inlet and a 31% wider blade. So cool air is dispersed farther and wider**, reaching up to 15 meters.
Copper Anti-bacterial Filter: Keep the air conditioner working efficiently with less effort. The Copper Anti-bacterial Filter is located outside, on the top, so it can easily be removed and cleaned. Its dense mesh keeps the Heat Exchanger clean and a Copper Sulphide coating helps protect you from inhaling harmful bacteria*.
3-Step Auto Clean: Keep the inside of the air conditioner hygienic by doing nothing! After it has been working, the Auto Clean function automatically dries the Heat Exchanger using a 3-step process. It removes moisture by blowing air for between 10 to 30 minutes*. So it prevents the buildup of bacteria and odors.
5-Step Convertible Cooling: Save energy, but still stay cool. The 5-step Convertible Cooling* lets you adjust the compressor operation in 5 steps, from 40% to 120%, to suit your changing cooling needs, using the minimal amount of energy**. You can also use it to reduce your daily energy consumption whenever you want.
Durafin™ Ultra: Safeguard the Heat Exchanger from damaging corrosion. The Durafin™ Ultra has an anti-corrosive layer and a hydrophilic layer that protect the Heat Exchanger from rust. Its superb corrosion-resistance was proven in a Salt Spray Test (SST)*.
Coated Copper Tube: Enjoy a longer-lasting performance and save money. The Heat Exchanger’s coated copper tubes have 7.5x better corrosion resistance*, protecting it against harmful environmental conditions, like dust and pollutants. It extends the lifespan, improves reliability and reduces maintenance costs.
Triple Protector Plus: Enjoy a long-lasting performance in challenging environments. Triple Protector Plus technology prevents damage from power surges and fluctuating electrical currents, without a separate voltage stabilizer*. Its anti-corrosion coating also protects the condenser and cabinet in harsh conditions.
R32 Refrigerant: Protect the planet by reducing the impact of climate change. The air conditioner uses the next generation R32 refrigerant, which helps conserve the ozone layer and has a low impact on global warming compared to conventional R22 or R410A refrigerants. So it’s much more environmentally friendly*.
The standard installation charges are Rs. 1599 and need to be paid directly to the service engineer. Please check the offer details to know about any installation offers that are available. Standard installation of air-conditioners covers only: 1) Drilling of holes into a brick wall for taking out the pipes. 2) Fixing a hole sleeve & cap. 3) Fixing the indoor and outdoor unit. 4) Connecting indoor and outdoor units using the standard Kit provided by the manufacturer (at additional cost, unless specified otherwise). 5) Wrapping the pipe with seasoning tape. Not covered as part of standard Installation charges are: 1) Outdoor unit stand - Rs. 750-1000. 2) Extra copper wire - Rs. 600-800 per metre. 3) Drain pipe extension, if any - Rs. 100 per metre. 4) Wiring extension from the meter to the installation site - Rs. 100 per metre. 5) Stabilizer, if needed, is chargeable. 6) Plumbing and masonry work. 7) Power-point/MCB fitting and any other electrical work. 8) Carpentry work. 9) Dismantling/shifting of the old AC's masonry - Rs. 1000-1500. 10) Core cutting fabrication and electrical.
